CE Approved Lab Fume Hood Integrated Type Lab Fume Cupboard 4 Feet Wide All Steel Standard Laboratory Fume Cabinet

  • FOB Price:Get Latest Price >
  • Min.Order:1 Set(s)
  • Production Capacity:1000 sets per month
  • Payment Terms:T/T , PayPal , Small-amount payment , Money Gram , EXW , FCA , Others(FOB, CFR, CPT)
  • Favorite
Xuecheng Global Trader Co., Ltd

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Model:XC-FH1200
  • Certification:CE
  • Dimension:1200x850x2350mm
  • Packaging Details:carton with films or fumigation-free plywood box
  • Brand Name:XUECHENGLAB
  • Trademark:XUECHENGLAB
  • Place of Origin:China
  • Warranty:1 year

Description

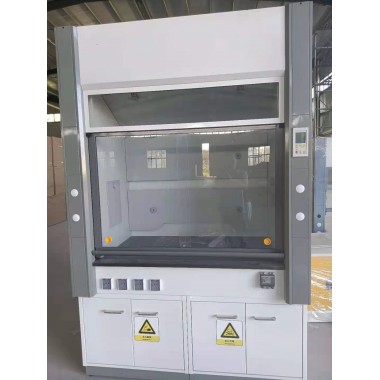

Standard Type Laboratory Fume Hood



Fume hood is one kind of lab furniture, essential for laboratories, which plays the role of air exhaust and gas exchange.

The structure of fume hood is upper-lower type, there is an exhaust hole at the top, which can be installed with vent fan.The upper hood has gas collection hood, guide baffle controller, lamp, sockets, etc the visible window is made of tempered glass, can be moved up-down feely, operated by people.

The lower cabinet is wall bench type, the upper part is worktop, the lower is cabinet body, the worktop can be installed with water sink&tap.

FeaturesUpper Hood: adopts double-layer structure design.
- The outer layer is steel made shell, with 1.0mm thick galvanized steel sheet bended and pressed, the surface is treated by unoil, pickling, phosphating to prevent rust, then electrostatic spraying epoxy protective coating as surface treatment of anti-acid/alkali/corrosion, the adhesive force of its spraying epoxy protective coating is good after the test of drop impact;
- The inner layer is lining board (including the top panel, side panel, guide panel): use 5mm thick compact chemical base panel, with excellent anti-corrosion effect, the guide panel is 3-level exhaust guide design inside, can remove the exhaust corners and contribute to discharge gases with different density;
- It adopts side or back counterweight structure and knock-down movable top panel and side panels(lining panels maintenance window), which is convenient for maintenance and upgrade of counterweight, water, electricity and gas.

- Sliding Window System
  1. Visible window: ≥5mm thick anti-explosion tempered glass, slides smoothly, can stop at any position of the track; main window glass can slide around freely, is convenient for user to operate.
  2. Belt drive counterweight 3. Aluminum ally handle
- Electrical System
  1. Controller= LCD screen intelligent control panel: the controller is set on side of outer column, which is convenient for observation and operation.
  2. Socket: use safe socket with protecting cover of dustproof, spray proof. Outer size is 60*60mm, 10A/16A 220V multifunction socket, suitable for all kinds of lab equipment.
  3. Lighting: use integrative LED lamp, hidden in the top panel, will not be in touch with the gases of the fume hood, easy to be changed, the luminance is enough for experiment purpose.
  4. Equipped with overload and short circuitprotection safety device.
-  Exhaust air system: the top hood panel is internal three-stage exhaust air design the air outlet dia is 250mm.

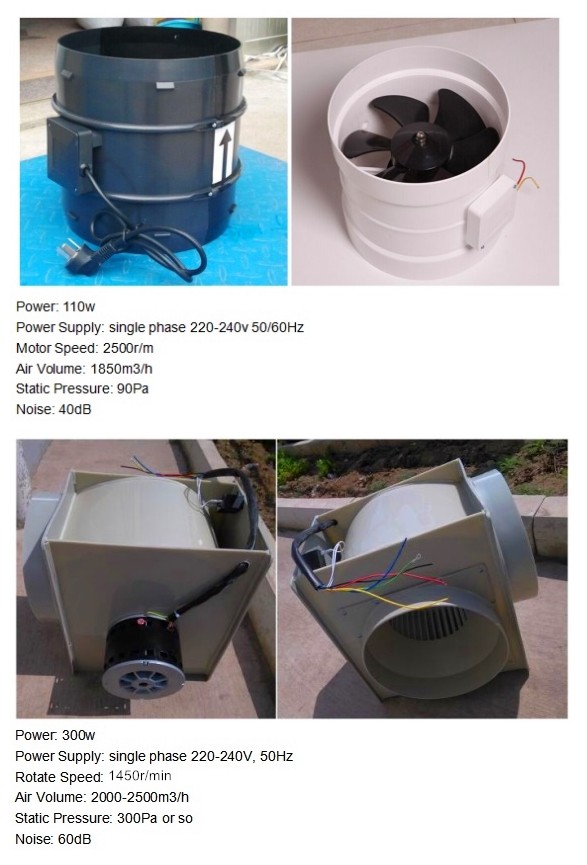

 optional: centrifugal blower or axial flow blower, ducting, valve, etc

Lower Cabinet:
- Worktop:12.7mm thick solid core physiochemical board, acid and alkali resistant, corrosion resistance.
epoxy resin board or ceramic board is optional.
- Base Cabinet: the underneath part is overall assembly structure, use 1.0mm thick galvanized steel plate bent, with surface sprayed by epoxy resin powder.
1. Hinge: use 90° damping steel hinges, no noise, no spring back, high strength and can not be easily broken.
2. Handle: use embedded Type or C Type aluminium alloy handles or integral bent steel handles.


Technical Specifictaions
    Product Name        Dimension        Model
Standard Type Fume Hood1200*850*2350mm
1500*850*2350mm
1800*850*2350mm		XC-FH1200
XC-FH1500
XC-FH1800
Notes:

1 We can design and manufacture non-standard dimension as per user's requirements.
2. The price excluding vent blower, vent ducting water sink&tap, flow control valve and cock.


Size1200mmL*D*H1500mmL*D*H1800mmL*D*H
Outside Size1200*850*23501500*850*23501800*850*2350
Inside Size990*750*12051290*750*12051590*750*1205
Under cabinet Size1200*650*8601500*650*8601800*650*860
Top Height860  860860
ventilation door open height650650650
Recommended top wind speedAt the place of 60% ventilation door open height, the fume hood recommended  average wind speed is not less than 0.5meter/second

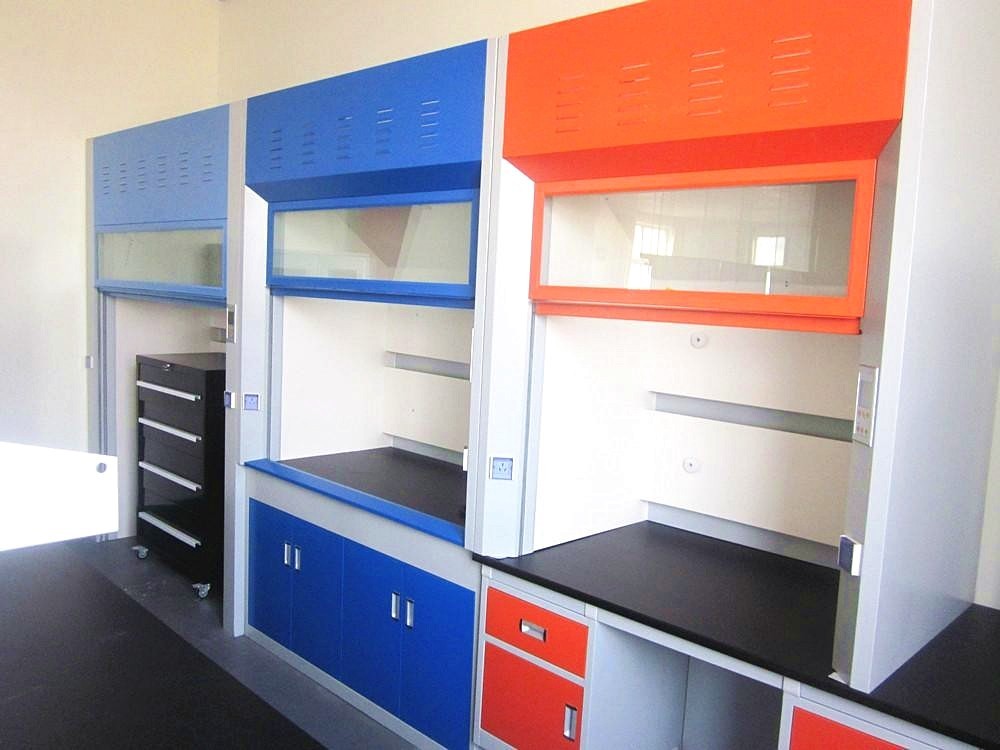

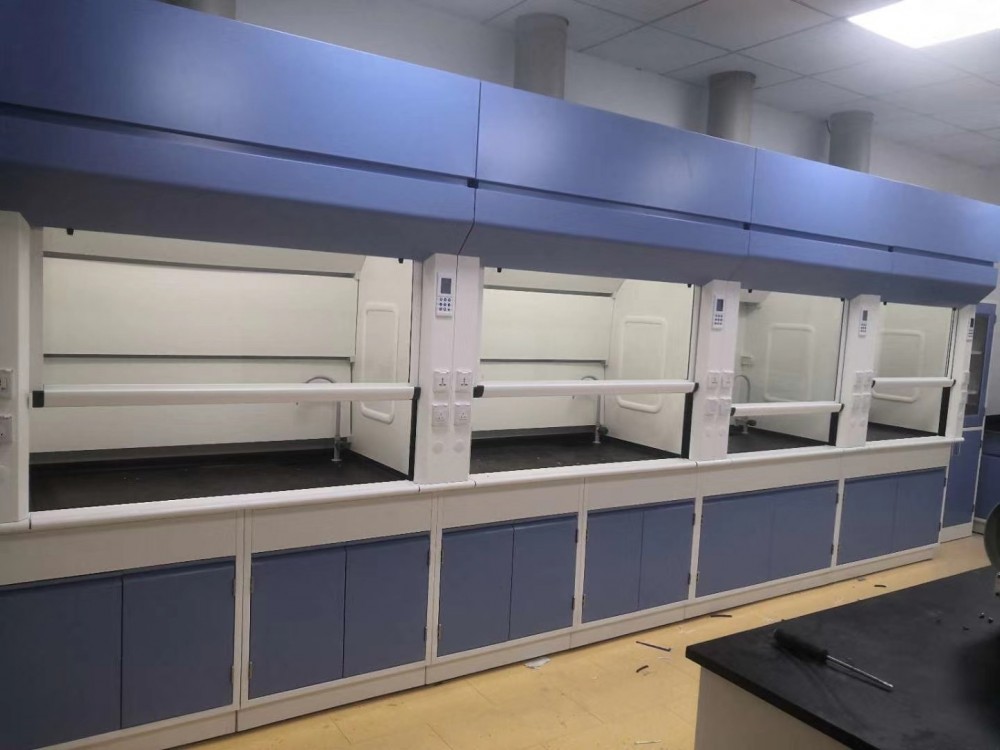

More Models for Option

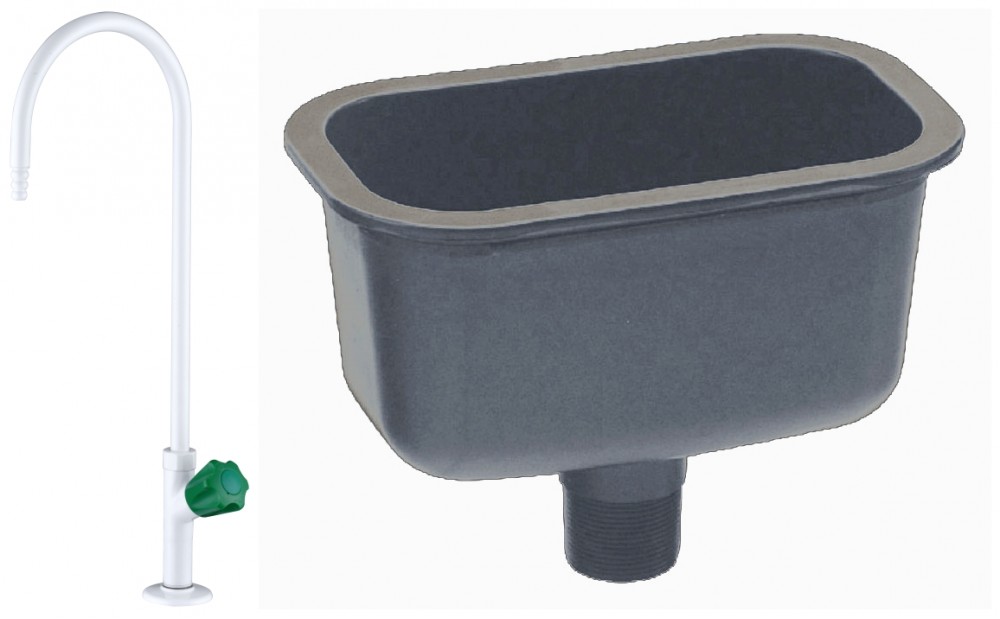

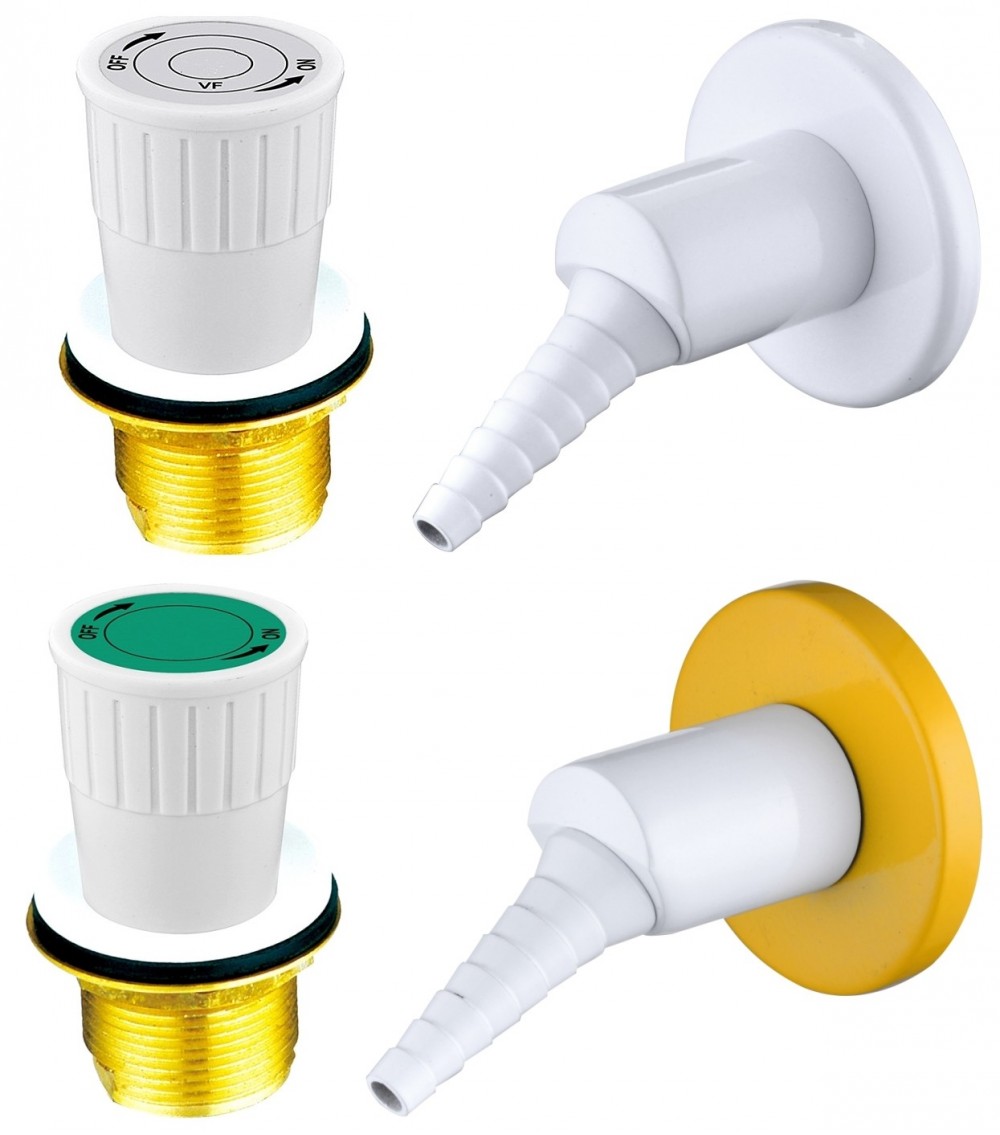

Accessories

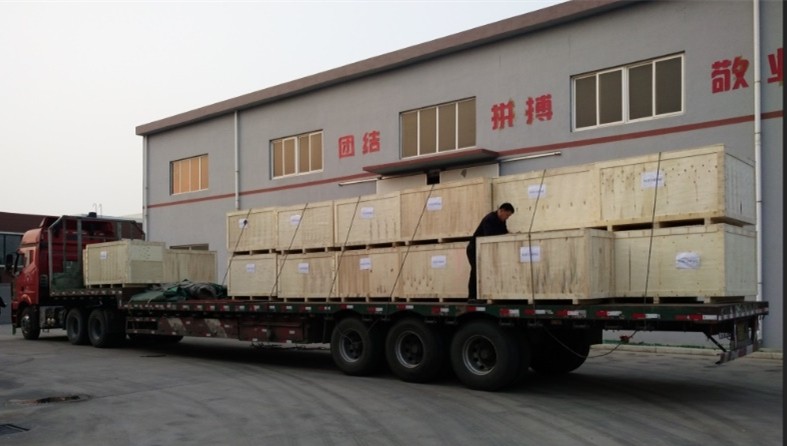

Packaging&Shipping

Both of weight and dimension are big, generally lab benches, fume hoods or lab cabinets are going to be shipped by Sea;

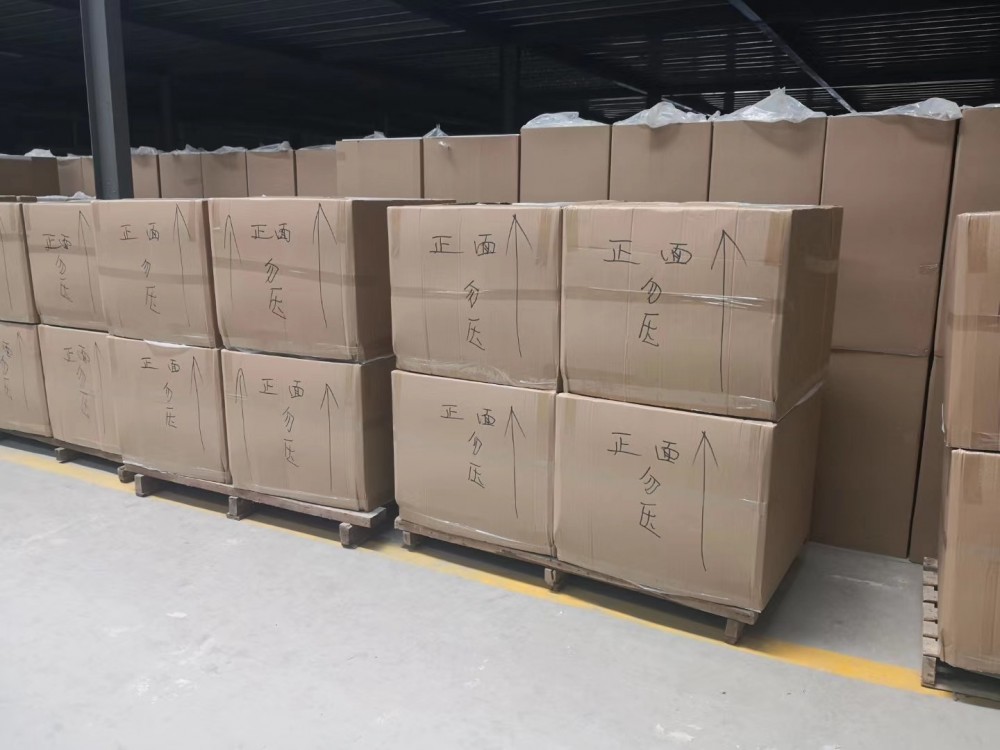

They would be packed in cartons (FCL Sea Transportation) or plywood boxes(LCL Sea Transportation) in assembled or disassembled state.

While Air shipping is available if you accept the shipping cost.



Application

biological pharmacy, biological analysis, plant culture, environmental test, electronic instruments and scientific research, etc.



Company Profile

Xuecheng Global Trader Co., Ltd is one professional industry and trade company for lab furniture, integrating production, R&D, sales, installation and after-sale service, located in beautiful Olympic Sailing City- Qingdao, China.

After years' development, we have grown into one diversified company, engaged in all kinds of lab furniture, lab equipment, medical equipment, etc

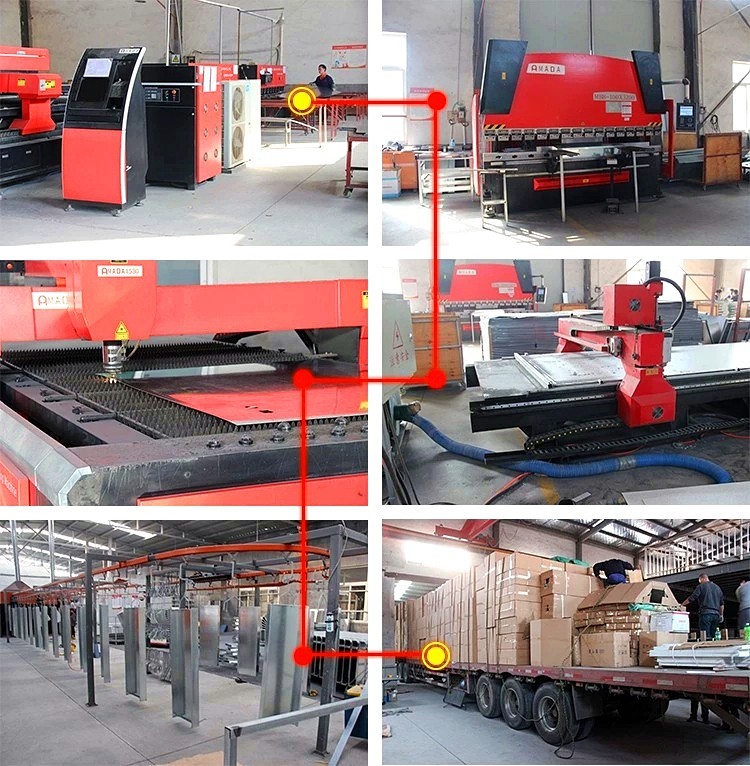

Process(Workshop& Production Line)
1. Raw materials preparation (kinds of wood/pp boards, steel plates)
2. Cutting
3. Punching
4. Welding
5. Bending
6. Baking and Painting(semi- product)
7. Assembly
8. Packing
7. Shipping

Certificate:
CE, SGS
